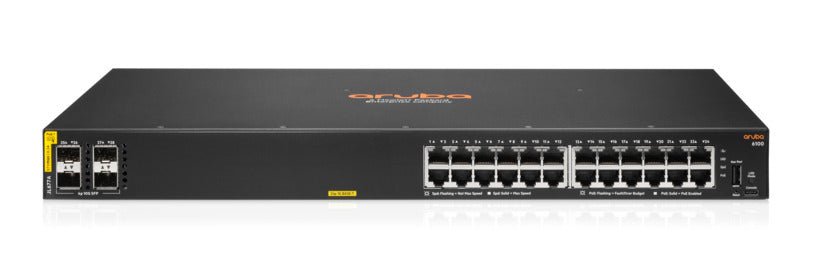

JL677A - Aruba 6100 24G CL4 4SFP+ Switch

Name: JL677A - Aruba 6100 24G CL4 4SFP+ Switch
Brand: Aruba
SKU: JL677A
Price: 2195.0 CAD
Availability: InStock

by Aruba

$2,195.00 CAD

Item Code: JL677A

Condition: New

26 in stock

Quantity

Canadian Hardware Supplier

✔ No Duties

✔ Fast Shipping

The Aruba CX 6100 switch series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switch provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This switch series has convenient built-in high-speed uplinks to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet work spaces.

MAIN SPECIFICATIONS

Product Description

HPE Aruba 6100 24G Class4 PoE 4SFP+ - switch - 28 ports - managed - rack-mountable

Device Type

Switch - 28 ports - managed - stackable

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs

Capacity

Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256

MAC Address Table Size

8192 entries

Routing Protocol

IGMPv2, IGMPv3

Features

Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

Power

AC 100-127/200-240 V (50/60 Hz)

Dimensions (WxDxH)

17.4 in x 10.6 in x 1.7 in

Weight

9.24 lbs

Localization

English / United States

Manufacturer Warranty

Limited lifetime warranty

EXTENDED SPECIFICATIONS

General

Device Type

Switch - 28 ports - managed - stackable

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs

Capacity

MAC Address Table Size

8192 entries

Routing Protocol

IGMPv2, IGMPv3

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

Processor

1 x ARM A9: 1.016 GHz

RAM

4 GB DDR3 SDRAM

Flash Memory

16 GB

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A

Power

Power Device

Internal power supply

Power Provided

500 Watt 2.3 A

Voltage Required

AC 100-127/200-240 V (50/60 Hz)

Power Consumption Operational

22.9 Watt

Miscellaneous

Compliant Standards

FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792

Localization

English / United States

Dimensions & Weight

Width

17.4 in

Depth

10.6 in

Height

1.7 in

Weight

9.24 lbs

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

113 °F

Humidity Range Operating

15 - 95% (non-condensing)

Humidity Range Storage

15 - 90% (non-condensing)

MAIN SPECIFICATIONS

Product Description

HPE Aruba 6100 24G Class4 PoE 4SFP+ - switch - 28 ports - managed - rack-mountable

Device Type

Switch - 28 ports - managed - stackable

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs

Capacity

MAC Address Table Size

8192 entries

Routing Protocol

IGMPv2, IGMPv3

Features

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

Power

AC 100-127/200-240 V (50/60 Hz)

Dimensions (WxDxH)

17.4 in x 10.6 in x 1.7 in

Weight

9.24 lbs

Localization

English / United States

Manufacturer Warranty

Limited lifetime warranty

EXTENDED SPECIFICATIONS

General

Device Type

Switch - 28 ports - managed - stackable

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs

Capacity

MAC Address Table Size

8192 entries

Routing Protocol

IGMPv2, IGMPv3

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

Processor

1 x ARM A9: 1.016 GHz

RAM

4 GB DDR3 SDRAM

Flash Memory

16 GB

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A

Power

Power Device

Internal power supply

Power Provided

500 Watt 2.3 A

Voltage Required

AC 100-127/200-240 V (50/60 Hz)

Power Consumption Operational

22.9 Watt

Miscellaneous

Compliant Standards

Localization

English / United States

Dimensions & Weight

Width

17.4 in

Depth

10.6 in

Height

1.7 in

Weight

9.24 lbs

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

113 °F

Humidity Range Operating

15 - 95% (non-condensing)

Humidity Range Storage

15 - 90% (non-condensing)

Lifetime
