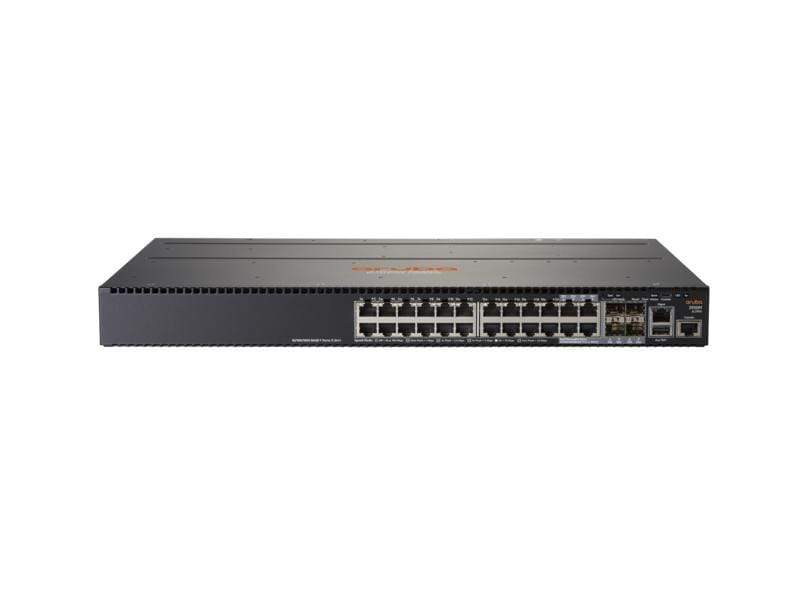

JL320A - Aruba 2930M 24G PoE+ 1-slot Switch

by Aruba
$1,695.00 CAD
Item Code: JL320A
Condition: New
Availability: In Stock. Usually Ships in 24 hrs.

18 in stock

IT Yuda Canadian Hardware SupplierCanadian Hardware Supplier
IT Yuda - Cisco and HP Enterprise
No Duties
Fast Shipping

SKU: JL320A

UPC/EAN#: 190017071213

Aruba 2930M 24G POE+ 1Slot Switch is designed for digital workplaces optimized for mobile users. These Layer 3 access switches Aruba JL320A are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch offices.

Aruba 2930M JL320A delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE+, robust QoS, SDN and requires no software licensing.

Check other products of Aruba 2930M Switch Series

Product Description HPE Aruba 2930M 24G POE+ 1-Slot - switch - 24 ports - managed - rack-mountable
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 20 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 720 W
Performance Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.1 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Latency (10 Mbps): 98.5 µs ¦ Latency (100 Mbps): 11.8 µs
Capacity IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ RIP routes: 10000 ¦ Static routes: 256
MAC Address Table Size 32768 entries
Jumbo Frame Support 9220 bytes
Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.4 in x 12.8 in x 1.7 in
Weight 9.92 lbs
Manufacturer Warranty Limited lifetime warranty



EXTENDED SPECIFICATIONS

General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 20 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 720 W
Performance Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.1 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Latency (10 Mbps): 98.5 µs ¦ Latency (100 Mbps): 11.8 µs
Capacity IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ RIP routes: 10000 ¦ Static routes: 256
MAC Address Table Size 32768 entries
Jumbo Frame Support 9220 bytes
Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL, TLS
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
Processor 1 x ARM Cortex-A9: 1.016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 20 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1000Base-T ¦ 1 x serial (console) ¦ 1 x USB Type B ¦ 1 x 1000Base-T management
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot ¦ 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Installed Qty 0 (installed) / 2 (max)
Voltage Required AC 120/230 V (50/60 Hz)
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC60950-1:2005+A1:2009+A2:2013
Dimensions & Weight
Width 17.4 in
Depth 12.8 in
Height 1.7 in
Weight 9.92 lbs
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 15 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 90% (non-condensing)

KEY SELLING POINTS

  • Aruba 2930M 24G POE+ 1Slot Switch provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
  • Aruba 2930M 24G POE+ 1Slot Switch is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
  • Aruba 2930M 24G POE+ 1Slot Switch includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
  • Aruba 2930M 24G POE+ 1Slot Switch supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
  • Free Shipping
  • On all orders over $500 across Canada, The US and Europe.
  • All items are ORIGINAL and GENUINE only
  • IT Yuda only sells New Factory Sealed original equipment.
  • Easy Returns
  • We offer a 30 Day Return Policy + DOA Protection.
  • Professional Technical Support
  • IT Yuda experienced team can provide support over the phone, by email or by remotely login.
