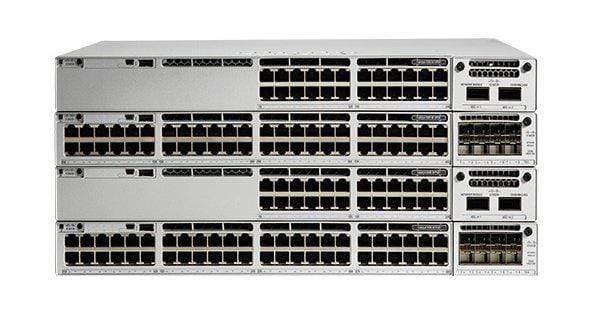

What are the Cisco Catalyst 9300 Series Switches?
The Cisco Catalyst 9300 Series Switches are the next generation of enterprise-class stackable access-layer switches that are part of the new Cisco Catalyst 9000 Family. These switches also support full IEEE 802.3at PoE+, UPoE, modular and field-replaceable network modules, redundant fans, and power supplies.
In addition, the Cisco Catalyst 9300-based models support a variety of uplink modules for both copper and fiber uplink support. These models add even more flexibility to the interface choices that you can make in a single Cisco Catalyst 9300 Switch or in a stack of Cisco Catalyst 9300 Switches.
Check Cisco Catalyst 9000 Series Switches 3D Model.
Cisco Catalyst 9300 Series Switch configurations
Model | Total 10/100/1000 or Multigigabit Copper Ports | Default AC Power Supply | Available PoE Power | Cisco StackWise-480 | Cisco StackPower |
C9300-24T | 24 | 350WAC | Yes | Yes | |
C9300-48T | 48 | 350WAX | |||
C9300-24P | 24 POE+ | 715WAC | 445W | ||
C9300-48P | 48 POE+ | 715WAC | 437W | ||
C9300-24U | 24 Cisco UPOE | 1100WAC | 830W | ||
C9300-48U | 48 Cisco UPOE | 1100WAC | 822W | ||
C9300-24UX | 24 Multigigabit Cisco UPOE (100 Mbps or 1, 2.5, 5, or 10 Gbps) | 1100WAC | 490W |
Can I stack Cisco Catalyst 9300 with the 3850?
These switches do not stack together. Features are packaged differently between these platforms, they use different CPU architectures, and the platforms do not have the same scaling, making stacking with them impossible.
Are the network modules shared between the Cisco Catalyst 9300 and 9500?
No, the network modules are not shared between the Catalyst 9300 and 9500 because the ASIC, depth, and form factors are different for these product lines.
Can the Cisco Catalyst 9300 act as a wired switch?
The Catalyst 9300 switch provides connectivity for wired endpoints and wireless endpoints by connecting wireless access points. With the SD-Access architecture, the wired and wireless endpoints gets the same experience.
What are the supported uplink modules in the Cisco Catalyst 9300?
The Catalyst 9300 supports the following new uplink modules. All modules are supported across all 9300 platforms:
- 4 x 1 Gigabit Ethernet network module
- 4 x 1, 2.5, 5, or 10 Gigabit Ethernet network module
- 8 x 10 Gigabit Ethernet network module
- 2 x 40 Gigabit Ethernet network module
Cisco 10-Gigabit Ethernet Transceiver Modules for Catalyst 9300 Series |
|||||
Network Device | Transceiver Model | Minimum Software Release Required | |||
DOM Support | Software Release | ||||
C9300-24T C9300-24P C9300-24U C9300-24XU C9300-48T C9300-48P C9300-48U (With C9300-NM-8X for 10G uplink modules) |
SFP-10G-LR SFP-10G-SR SFP-10G-LRM SFP-10G-ER SFP-10G-ZR SFP-10G-SR-S SFP-10G-LR-S SFP-10G-ER-S SFP-10G-ZR-S SFP-10G-BXD-I SFP-10G-BXU-I SFP-10G-BX40D-I SFP-10G-BX40U-I DWDM SFP10G CWDM SFP10G SFP-H10GB-CU1M SFP-H10GB-CU3M SFP-H10GB-CU5M SFP-H10GB-ACU7M SFP-H10GB-ACU10M SFP-10G-AOC1M SFP-10G-AOC2M SFP-10G-AOC3M SFP-10G-AOC5M SFP-10G-AOC7M SFP-10G-AOC10M |
— | XE 16.5.1a |
What is the SKU mapping between the Cisco Catalyst 3850 and 9300?
3850 PIDs | 9300 PIDs | Short description |
---|---|---|
WS-C3850-24T | C9300-24T | Catalyst 9300 24-port data only switch |
WS-C3850-24P | C9300-24P | Catalyst 9300 24-port PoE+ switch |
WS-C3850-24U | C9300-24U | Catalyst 9300 24-port UPOE switch |
WS-C3850-24XU | C9300-24UX | Catalyst 9300 24-port mGig and UPOE switch wireless security tips |
WS-C3850-48T | C9300-48T | Catalyst 9300 48-port data only switch |
WS-C3850-48P | C9300-48P | Catalyst 9300 48-port PoE+ switch |
WS-C3850-48U | C9300-48U | Catalyst 9300 48-port UPOE switch |
