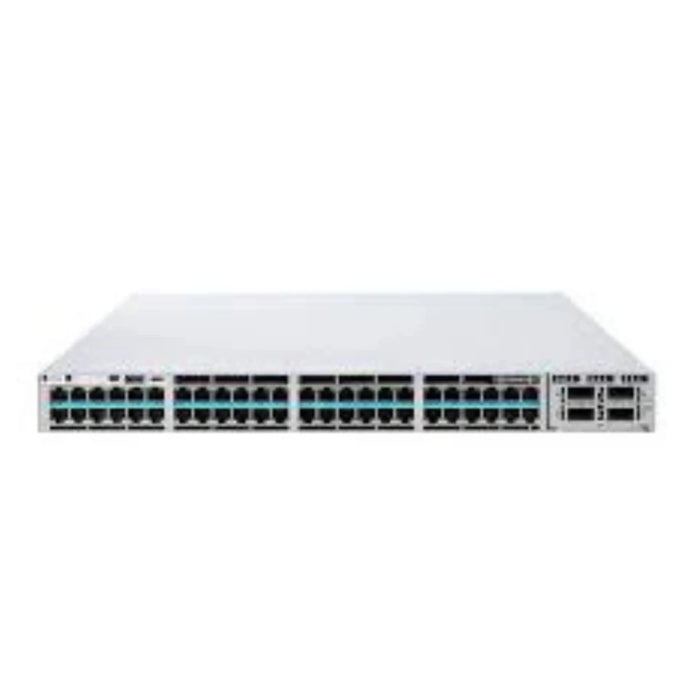

Cisco C9300X-48TX-E — Catalyst 9300X 48-Port 10G Multigigabit Data-Only Switch with Network Essentials
What it is
C9300X-48TX-E is a Cisco Catalyst 9300X Series enterprise access switch designed for high-performance campus and branch networks that need multigigabit copper connectivity up to 10Gbps but do not require PoE.
It provides 48 × multigigabit RJ-45 ports supporting 100M / 1G / 2.5G / 5G / 10G, plus a modular uplink slot for high-speed network modules. The “-E” version includes the Network Essentials software tier.
Why buyers pick C9300X-48TX-E (plain English)
48 ports up to 10Gbps: Every access port supports multigigabit speeds, making it ideal for high-performance workstations, servers, storage devices, and other copper-connected endpoints.
No PoE means lower complexity: This is a data-only model, so it is a strong choice when connected devices have their own power and PoE is unnecessary.
Flexible uplinks: The modular uplink slot lets you select the network module that matches your backbone requirements rather than being locked into fixed uplinks.
1 Tbps stacking: Cisco StackWise-1T provides very high stack bandwidth and allows multiple switches to operate as a single logical system.
Network Essentials licensing: Gives you the core enterprise switching and routing features needed for many campus access deployments without paying for the more advanced Network Advantage feature set.
60-second spec box (C9300X-48TX-E)
Access / downlink ports
- 48 × RJ-45 multigigabit ports
- Supported speeds:
- 100 Mbps
- 1 Gbps
- 2.5 Gbps
- 5 Gbps
- 10 Gbps
- Data only
- No PoE / PoE+ / UPOE
Uplinks
- Modular uplink slot
- Supports compatible C9300X-NM network modules
- Available uplink options include:
Stacking
- Cisco StackWise-1T
- Up to 1 Tbps stack bandwidth
- Supports multi-switch stacking
- StackPower+ support
Switching / routing
- Managed Layer 2 and Layer 3
- VLANs
- QoS
- STP / RSTP / MSTP
- EtherChannel / LACP
- IPv4 / IPv6
- Static routing
- Routed access capabilities
- ACLs
- Multicast support
- DHCP security features
Software
- Cisco IOS XE
- Network Essentials
- SKU suffix: -E
Management
- Cisco IOS XE CLI
- SSH
- SNMP
- NETCONF / RESTCONF
- Cisco Catalyst Center integration
- Telemetry and automation support
Power
- Internal AC power supply
- Redundant power supply support
- No PoE budget required
Physical
- 1U rack-mount switch
- Enterprise Catalyst 9300X chassis
- Hot-swappable fan and power architecture
Where it fits (and when to choose something else)
Perfect for:
- High-performance enterprise access
- 10GbE desktop/workstation connectivity
- Servers connected over copper
- Engineering and media environments
- Networks needing 2.5G / 5G / 10G access
- Customers wanting very high stack bandwidth without PoE
Choose something else if:
- You need UPOE+ / up to 90W PoE → choose C9300X-48HX-E
- You need more advanced routing features → choose C9300X-48TX-A
- You only need 1G access ports → a standard C9300-48T may be more cost-effective
- You need fiber downlinks → consider C9300X-24Y-E
- You need fixed uplinks instead of modular uplinks → choose a platform designed around fixed uplink ports
TL;DR
C9300X-48TX-E is a Cisco Catalyst 9300X enterprise switch with 48× data-only multigigabit copper ports supporting up to 10Gbps, modular high-speed uplinks, StackWise-1T, Cisco IOS XE, and Network Essentials licensing — ideal for high-bandwidth campus access where PoE is not required.
