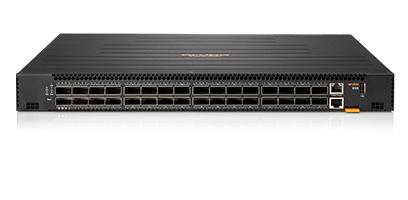

JL626A - Aruba 8325-32C 32 Port 100G QSFP Switch
Product Description
HPE Aruba 8325-32C - Switch - L3 - managed - 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ - front to back airflow - rack-mountable - TAA Compliant
The Aruba 8325 switch serves as both a campus (core and aggregation) and data center (Top of Rack) switch. This game-changing solution offers an innovative approach to dealing with network demands in the mobile, cloud and IoT era. The Aruba 8325 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its microservices style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8325 Switch Series provides line rate 1GbE, 10GbE, 25GbE, and 40GbE in a compact 1U form factor.
KEY SELLING POINTS
- Game-changing business agility
- Modern software system simplifies and automates
- High performance and high availability
Product Specifications
| Product Description | HPE Aruba 8325-32C - switch - 32 ports - managed - rack-mountable |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ |
| Performance | Switching capacity: 6.4 Tbps ¦ Throughput: 1.905 Mpps |
| Capacity | Virtual interfaces (VLANs) per port for 802.1q: 4096 |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP, NTP |
| Features | Routing, DHCP support, VPN support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), fan tray, redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, VXLAN tunnel endpoints (VTEP) support, Protocol Independent Multicast (PIM) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 20.3 in x 1.7 in |
| Weight | 20.94 lbs |
| Manufacturer Warranty | 5-year warranty |
| Encryption Algorithm | FIPS 140-2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Expansion / Connectivity | Interfaces: 32 x 100Gbit/40Gbit LAN |
| Power Details | Power Device: Internal power supply - hot-plug; Installed Qty: 2 (installed) / 2 (max); Power Redundancy Scheme: N+1; Power Provided: 650 Watt; Voltage Required: AC 120/230 V (50/60 Hz) |
| Miscellaneous | Included Accessories: 6 x fans; Compliant Standards: RoHS, WEEE; TAA Compliant: Yes |
