C9200 - 24P - E - Cisco 9200 24 - port PoE+ Switch. Network Essentials - IT YudaC9200 - 24P - E

C9200-24P-E - Cisco 9200 24-port PoE+ Switch. Network Essentials

by Cisco
$1,995.00 CAD - $1,995.00 CAD
$1,995.00 CAD
$1,995.00 CAD - $1,995.00 CAD
$1,995.00 CAD
SKU C9200-24P-E
Condition: New
Availability:
in stock, ready to be shipped

Our Customers Love Us

★★★★★

"Great customer service, and pricing."

Read Reviews
IT Yuda - Google Reviews IT Yuda - BBB

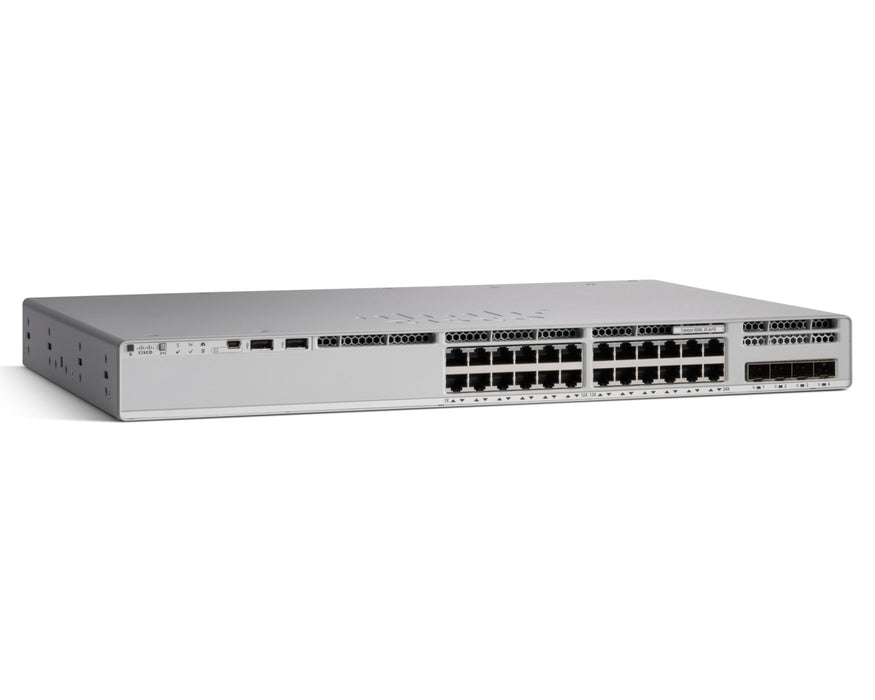

The Cisco C9200-24P-E is a Catalyst 9200 series switch with 24 Power over Ethernet Plus (PoE+) ports and the Network Essentials software package. This differs from the C9200-24P-A model, which comes with the more advanced Network Advantage software.

Key specifications
  • Ports: 24 x 10/100/1000 Mbps Ethernet ports, all with full PoE+ capability.
  • PoE Power: 370W of PoE power by default, with the option to expand to 740W by adding a redundant power supply.
  • Uplinks: Features modular uplink options, allowing for flexible connectivity configurations.
  • Performance:
    • Switching Capacity: 128 Gbps.
    • Stacking Bandwidth: 160 Gbps with optional backplane stacking (Cisco StackWise-160).
    • Forwarding Rate: 190.4 Mpps.
  • Software: Includes the Network Essentials software package. This provides basic Layer 3 routing functionality (static routing, RIP) but lacks the more advanced routing protocols found in the Network Advantage license.
  • Resiliency: Designed for high availability with Field-Replaceable Unit (FRU) redundant power supplies and fans.
  • Security: Supports security features like AES-128 MACsec encryption, policy-based segmentation, and Cisco's Trustworthy Systems.
  • Form Factor: 1U rack-mountable chassis with dimensions of 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm).
  • Memory: 4 GB DRAM and 4 GB Flash memory.
  • Power Supply: Comes with a PWR-C6-600WAC power supply by default.
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9200-24P-E
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9200
Product Model: C9200-24P
Product Name: Catalyst 9200 24-port PoE+ Switch. Network Essentials
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 24 x Gigabit Ethernet PoE+, 1 x Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 10GBase-X
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: Uplink Module
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 17.50" (444.50 mm)
Depth: 13.80" (350.52 mm)
Weight (Approximate): 12.13 lb (5500 g)
Miscellaneous
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
